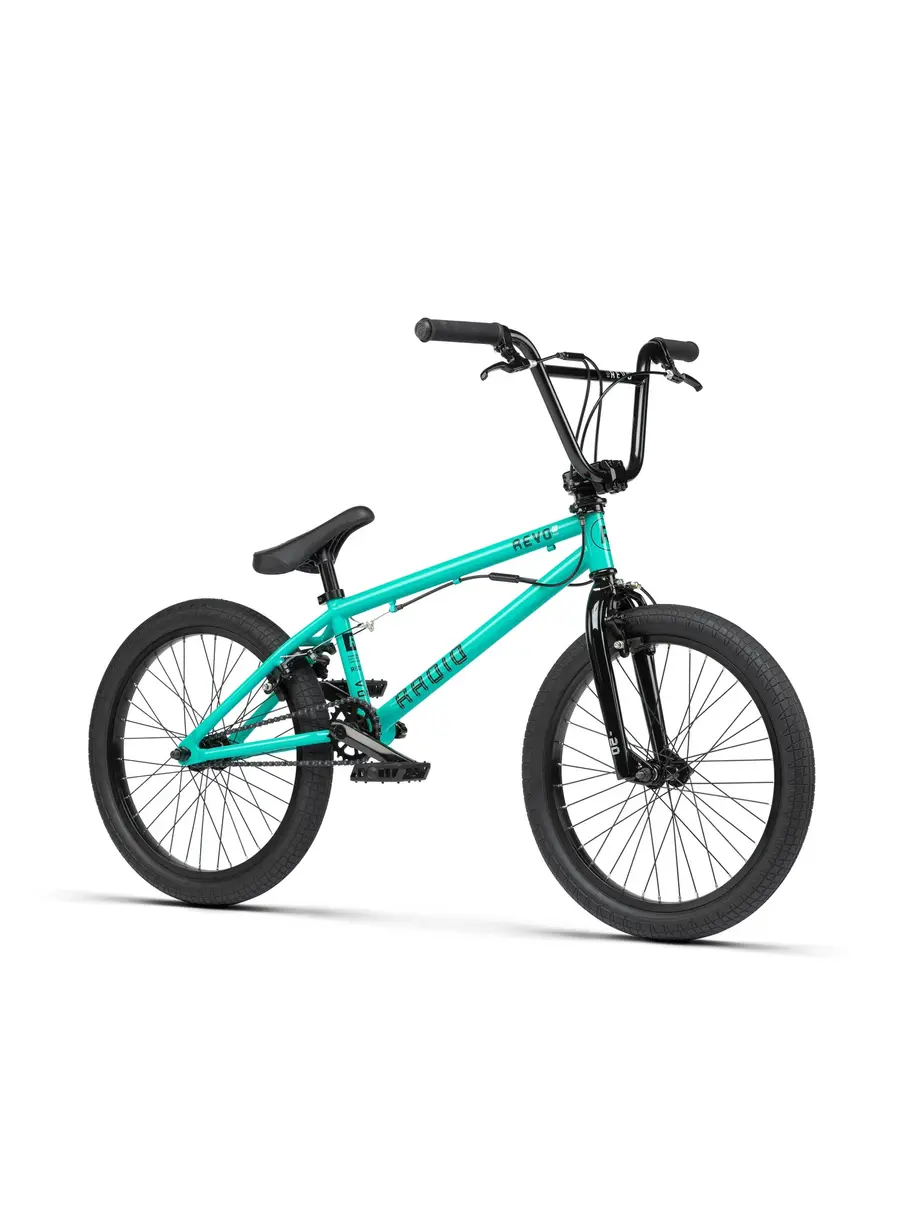

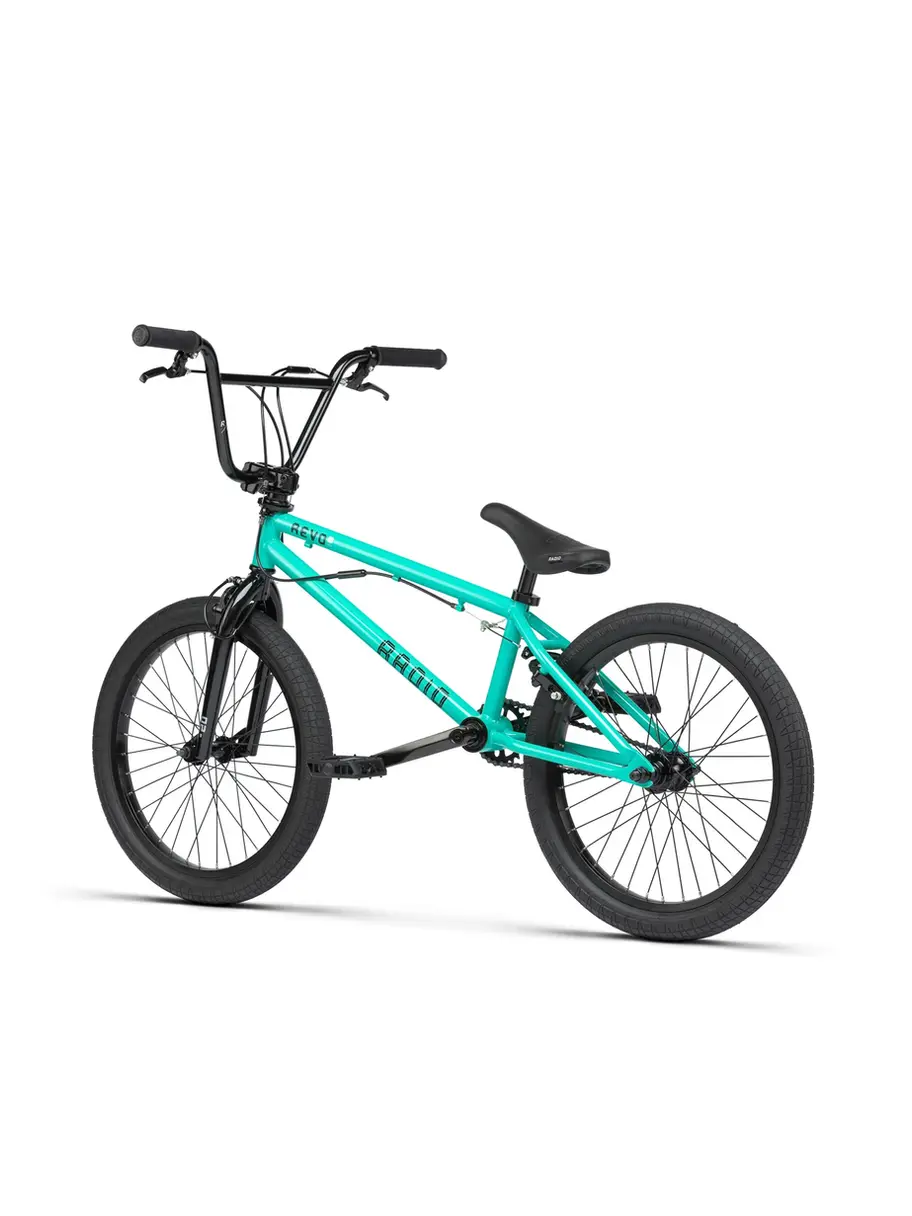

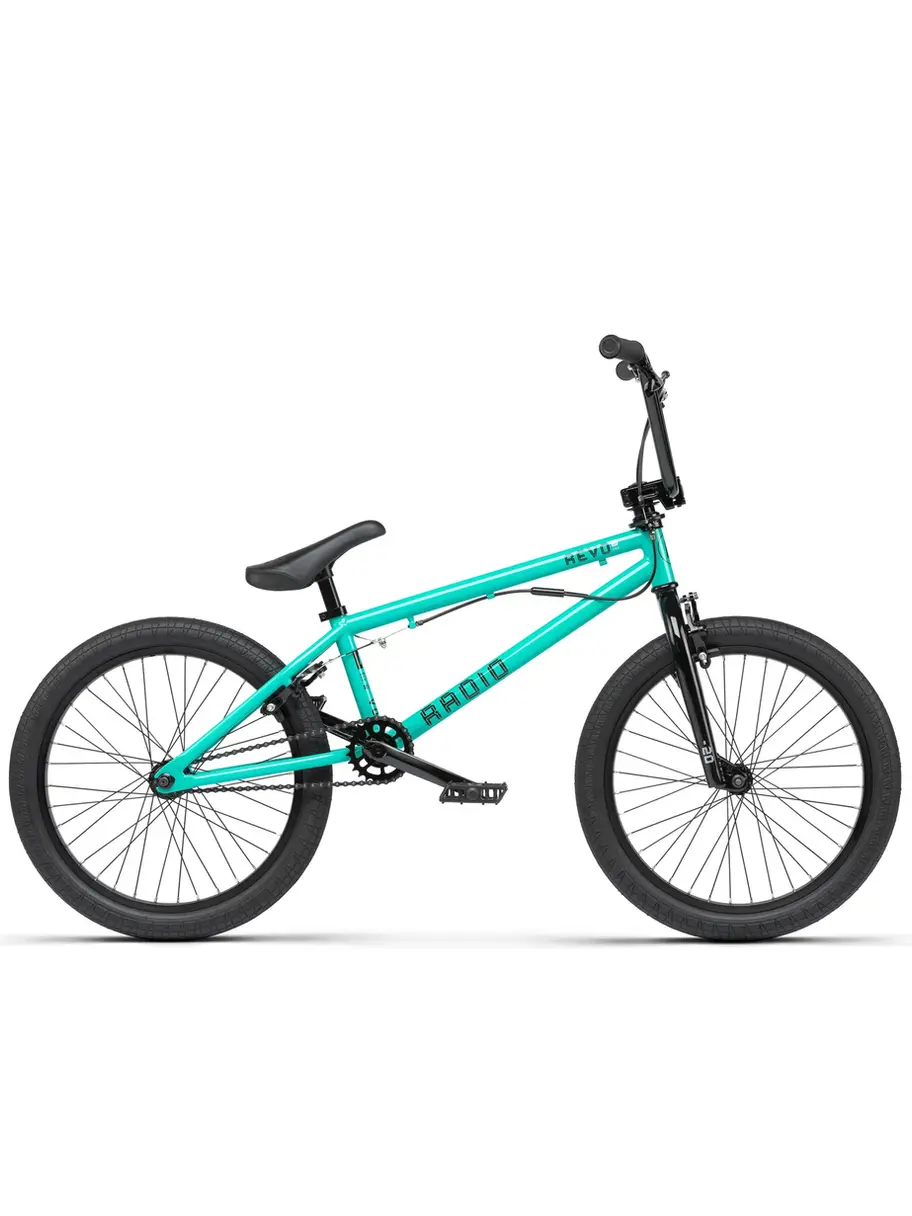

Revo 20" Pro FS by Radio BMX
$429.00
Just in Radio BMX model Revo 20" Free Style BMX
The REVO line allows you to get your first taste of the BMX world on a solid and well-designed bike. We took extra care when hand selecting the components on these bikes to ensure that the bike could be ridden straight out of the box, simple to work on and maintain, but also easily upgradable over time. Despite the low price-point, the REVO is packed full of great features like 25-9 gearing, tapered fork legs, and short/responsive pro-inspired geometry.
The Revo 20" PRO FS allows you to get your first taste of the BMX world on a solid and well-designed bike. Building on the Revo PRO 20”, this FS (Freestyle) version adds a front u-brake and rotor upgrade allowing this bike to provide everything you could need to get rad plus much, much more…
- FRAME: RADIO "REVO PRO FS 20" frame, full 1020 hi-ten
- FORK: RADIO "AM 20" fork, 1020 hi-ten, crmo steerer, welded pivots
- HANDLEBAR: RADIO "REVO PRO FS 20" bar, hi-ten
- GRIPS: RADIO “AM” grips, flange less, 150mm
- ROTOR: SALT "AM" rotor with SALT "AM" rotor cables
- STEM: SALT “AM” front load stem, 48mm reach
- HEADSET: FSA(Full Speed Ahead) A-headset, loose ball
- BRAKE LEVER: RADIO “AM” brake lever, alloy, front & rear
- BRAKE: RADIO "AM"u-brakes, alloy, front & rear

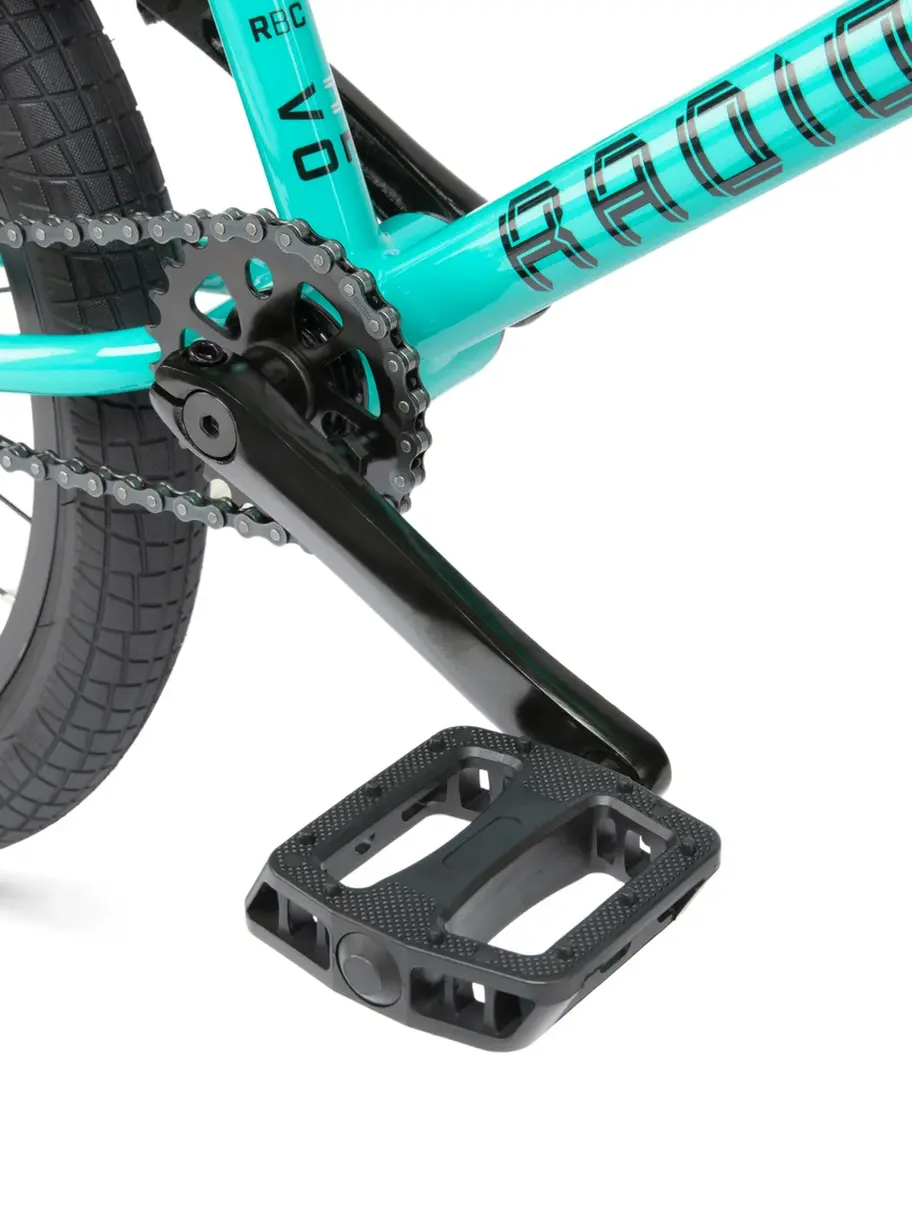

- CRANK: RADIO “ROOKIE” 3pc crank, forged, crmo, 170mm
- BB: RADIO "US" bottom bracket set, loose ball
- PEDALS: RADIO “ROOKIE” pedals, nylon
- CHAIN: KMC “S1” chain
- SPROCKET: RADIO “ROOKIE” sprocket, steel, 25t

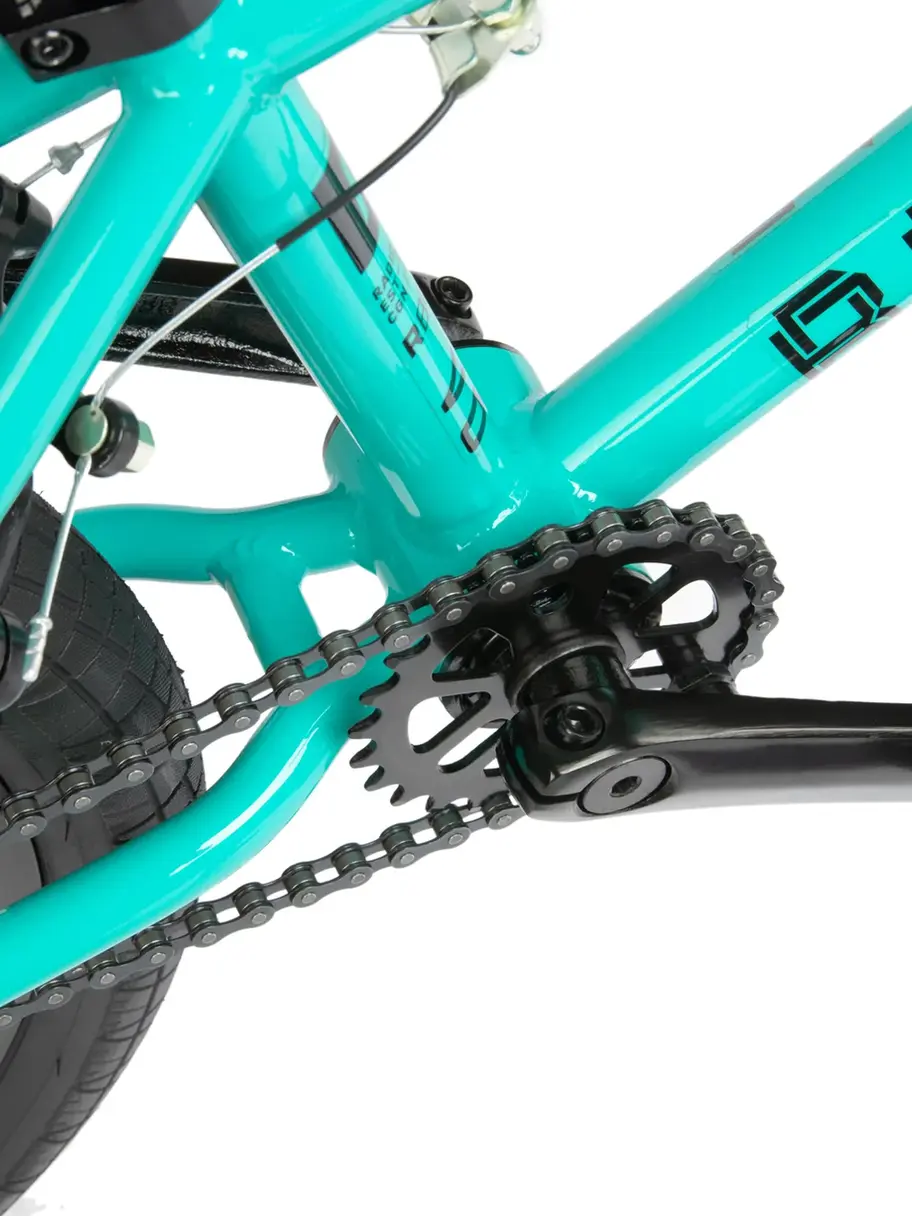

- DRIVER: cassette driver, 9t
- FRONT HUB: RADIO "ROOKIE" hub, steel, lb, 3/8"s, 36h
- REAR HUB: RADIO “ROOKIE” cassette hub, steel, lb, 9T, 14mm axle, 36h
- FRONT RIM: SALT “AM” rim, straight single wall, 36h
- REAR RIM: SALT “AM” rim, straight single wall, 36h

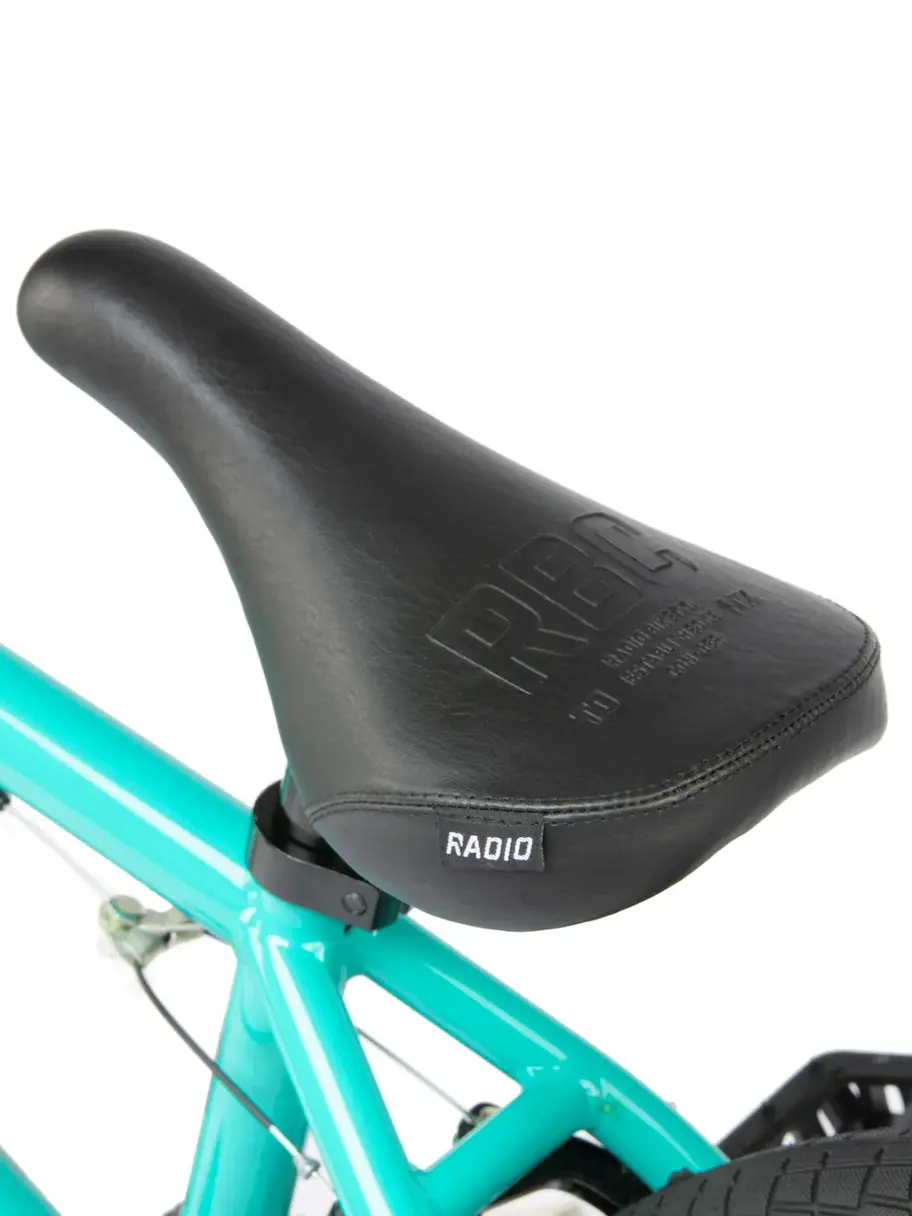

- SEAT: RADIO "CENTURY" combo seat, slim padded
- SEAT CLAMP: RADIO seat clamp, slim, alloy
- TIRES: RADIO “ROOKIE” tires, 20″x2.2″, front & rear
Weight: 13.04kg / 28.74lbs
Frame Geometry:
| Top Tube Length | 20" |
| Chain Stay Length | 13" |
| Head Tube Angle | 75° |
| Seat Tube Angle | 71.5° |
| Bottom Bracket Height | 11.75" |
| Standover Height | 7.8" |
Handlebar Geometry:
| Rise | 8.75" |
| Width | 29" |
| Back sweep | 11° |
| Ups weep | 2° |
Quantity
Only 1 left in stock
Notes
- Bikes comes fully assembled
- Comes with manufacture warranty
- Bike is for in store pick up only
- All bike sales are final
- Specifications/ price subject to change without notification
- Please call to make sure bike is assembled and ready
